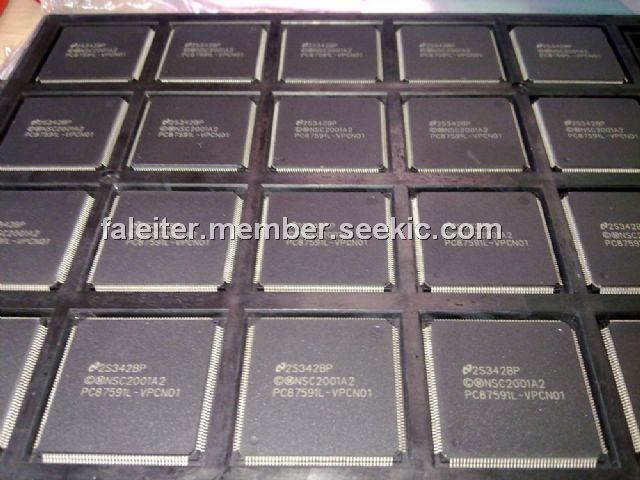

PC87591L-VPCN01

Product Summary

The PC87591L-VPCN01 is a highly integrated, embedded controller with an embedded-RISC core and integrated advanced functions. The PC87591L-VPCN01 is targeted for a wide range of portable applications that use the Low Pin Count (LPC) interface. The PC87591S is targeted for security applications and includes supporting hardware such as the Hardware Random Number Generator. The PC87591L-VPCN01 replaces the on-chip flash with 4K of boot ROM for value solutions using shared BIOS architecture. PC87591x refers to all the devices. The PC87591L-VPCN01 incorporates Nationals CompactRISC CR16B core (a high-performance 16-bit RISC processor), on-chip flash (ROM for the PC87591L-VPCN01) and RAM memories, system support functions and a Bus Interface Unit (BIU) that directly interfaces with optional external memory (such as flash) and I/O devices.

Parametrics

PC87591L-VPCN01 absolute maximum ratings: (1)VDD Host Domain Supply Voltage: -0.5 to +4.2 V; (2)VCC Core Domain Supply Voltage: -0.5 to +4.2 V; (3)AVCC Analog Supply Voltage: -0.5 to +4.2 V; (4)VBAT Battery Backup Supply Voltage: -0.5 to +4.2 V; (5)VI Input Voltage All other buffer types: -0.5 to 5.5 V; (6)VO Output Voltage All other buffer types: -0.5 to 5.5 V; (7)TSTG Storage Temperature: -65 to +165 ℃; (8)PD Power Dissipation: 1 W; (9)TL Lead Temperature Soldering (10 s): +260 ℃.

Features

PC87591L-VPCN01 features: (1)Host interface, based on Intels LPC Interface Specification Revision 1.0, September 29th, 1997; (2)PC01 Rev 1.0, and ACPI 2.0 compliant; (3)16-bit RISC core, with 2 Mbyte address space, and running at up to 20 MHz; (4)Software and Hardware controlled clock throttling; (5)Shared BIOS flash memory (internal and/or external); (6)Y2K-compliant RTC; (7)84/117 GPIO ports (for 128-pin/176-pin packages); (8)with a variety of wake-up events; (9)Extremely low current consumption in Idle mode; (10)JTAG-based debugger interface; (11)128-pin and 176-pin options, in LQFP package (PC87591L is 176-pin only).

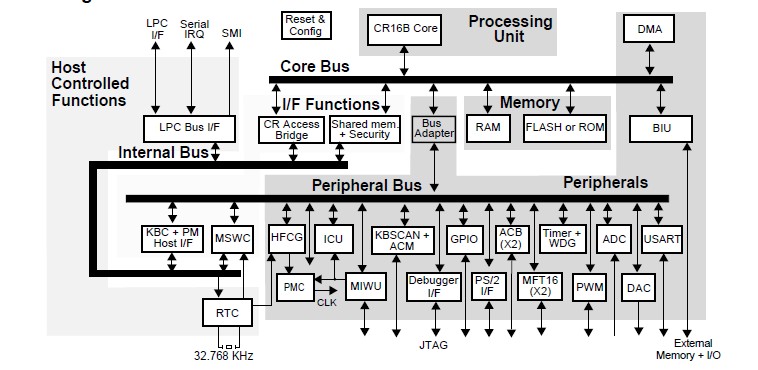

Diagrams
