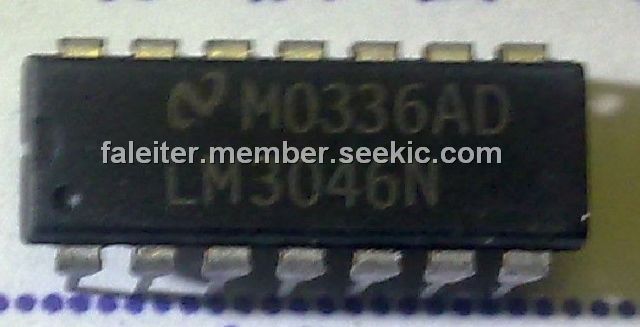

LM3046N

transistor, DIP14, 15 V, 50 mA, Low noise figure, five general purpose silicon NPN transistors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: LM3046N

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jackson's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-22

From Other Seller

Part Number:LM3046N
US $1.00 - 2.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

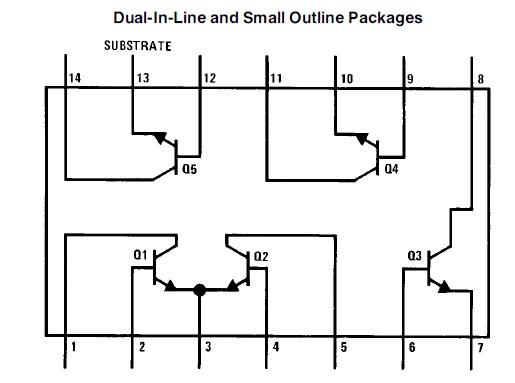

The LM3046N is a transistor. It consists of five general purpose silicon NPN transistors on a common monolithic substrate. Two of the transistors are internally connected to form a differentially-connected pair. The transistors are well suited to a wide variety of applications in low power system in the DC through VHF range. The applications of the LM3046N include: (1)General use in all types of signal processing systems operating anywhere in the frequency range from DC to VHF; (2)Custom designed differential amplifiers; (3)Temperature compensated amplifiers.

Parametrics

LM3046N absolute maximum ratings: (1)Collector to Emitter Voltage, VCEO: 15 V; (2)Collector to Base Voltage, VCBO: 20 V; (3)Collector to Substrate Voltage, VCIO: 20 V; (4)Emitter to Base Voltage, VEBO: 5 V; (5)Collector Current, IC: 50 mA; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to+85℃; (8)Soldering Information Dual-In-Line Package Soldering (10 Sec.): 260℃; Small Outline Package Vapor Phase (60 Seconds): 215℃; Infrared (15 Seconds): 220℃.

Features

LM3046N features: (1)Two matched pairs of transistors VBE matched: ±5 mV; Input offset current 2 μA max at IC = 1 mA; (2)Five general purpose monolithic transistors; (3)Operation from DC to 120 MHz; (4)Wide operating current range; (5)Low noise figure: 3.2 dB typ at 1 kHz; (6)Full military temperature range: -55℃ to +125℃.
