Product Summary

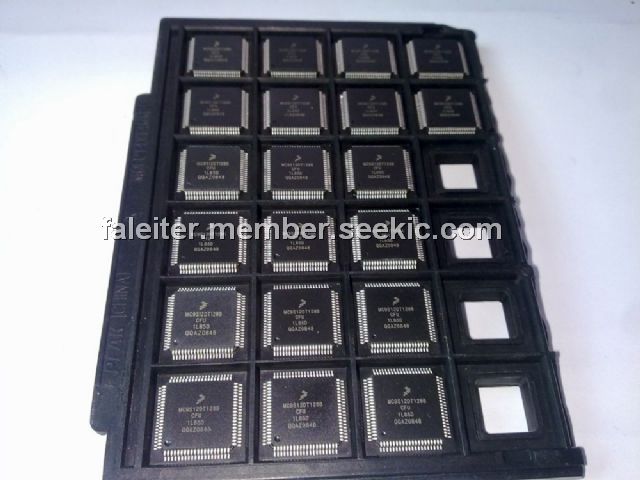

The MC9S12DT128BCFU is a 16-bit microcontroller unit. The MC9S12DT128BCFU has full 16-bit data paths throughout. However, the external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for lower cost systems. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements.

Parametrics

MC9S12DT128BCFU absolute maximum ratings: (1)I/O, Regulator and Analog Supply Voltage VDD: -0.3 to 6.0 V; (2)Digital Logic Supply Voltage VDD: -0.3 to 3.0 V; (3)PLL Supply Voltage VDDPLL: -0.3 to 3.0 V; (4)Voltage difference VDDX to VDDR and VDDA DVDDX: -0.3 to 0.3 V; (5)Voltage difference VSSX to VSSR and VSSA DVSSX: -0.3 to 0.3 V; (6)Digital I/O Input Voltage VIN: -0.3 to 6.0 V; (7)Analog Reference VRH, VRL: -0.3 to 6.0 V; (8)XFC, EXTAL, XTAL inputs VILV: -0.3 to 3.0 V; (9)TEST input VTEST: -0.3 to 10.0 V; (10)Instantaneous Maximum Current Single pin limit for all digital I/O pins ID: -25 to +25 mA; (11)Instantaneous Maximum Current Single pin limit for XFC, EXTAL, XTAL4 IDL: -25 to +25 mA; (12)Instantaneous Maximum Current Single pin limit for TEST IDT: -0.25 to 0 mA; (13)13 Storage Temperature Range Tstg: -65 to 155 ℃.

Features

MC9S12DT128BCFU features: (1)Upward compatible with M68HC11 instruction set; (2)Interrupt stacking and programmers model identical to M68HC11; (3)20-bit ALU; (4)Instruction queue; (5)Enhanced indexed addressing; (6)Five receive and three transmit buffers; (7)Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit; (8)Four separate interrupt channels for Rx, Tx, error and wake-up; (9)Low-pass filter wake-up function; (10)Loop-back for self test operation.

Diagrams

MC9S12DT128BCFU pin connection
