Product Summary

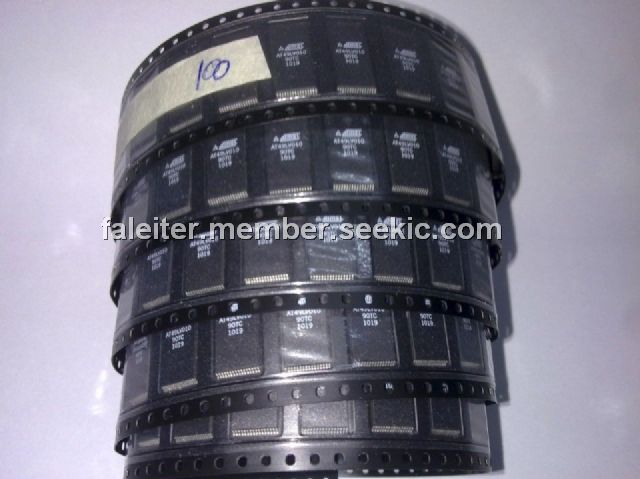

The AT49LV010-90TC is 3-volt-only, 1-megabit Flash memory organized as 131,072 words of 8 bits each. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT49LV010-90TC offers access times to 55 ns with power dissipation of just 90 mW over the commercial temperature range. When the AT49LV010-90TC is deselected, the CMOS standby current is less than 50 μA.

Parametrics

AT49LV010-90TC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT49LV010-90TC features: (1)Single Supply Voltage, Range 2.7V to 3.6V; (2)Single Supply for Read and Write; (3)Fast Read Access Time – 55 ns; (4)Internal Program Control and Timer; (5)8K Bytes Boot Block With Lockout; (6)Fast Erase Cycle Time – 10 seconds; (7)Byte-by-byte Programming – 30 μs/Byte typical; (8)Hardware Data Protection; (9)DATA Polling for end of Program Detection; (10)Low Power Dissipation; (11)Typical 10,000 Write Cycles.

Diagrams

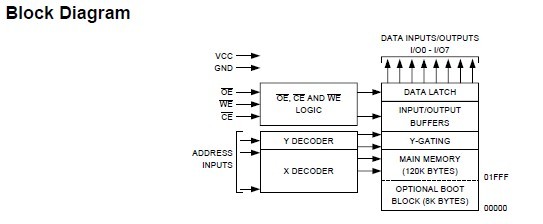

AT49LV010-90TC Block Diagram
