Product Summary
The ATTINY13A-SSU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13A-SSU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATTINY13A-SSU absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0mA; (7)DC Current VCC and GND Pins: 200.0mA.
Features
ATTINY13A-SSU features: (1)Peripheral Features: One 8-bit Timer/Counter with Prescaler and Two PWM Channels; 4-channel, 10-bit ADC with Internal Voltage Reference; Programmable Watchdog Timer with Separate On-chip Oscillator; On-chip Analog Comparator; (2)Special Microcontroller Features: debugWIRE On-chip Debug System; In-System Programmable via SPI Port; External and Internal Interrupt Sources; Low Power Idle, ADC Noise Reduction, and Power-down Modes; Enhanced Power-on Reset Circuit; Programmable Brown-out Detection Circuit with Software Disable Function; Internal Calibrated Oscillator.

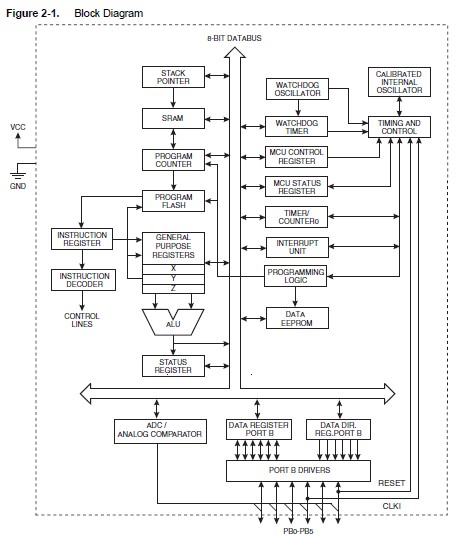

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATTINY13A-SSU |
Atmel |
8-bit Microcontrollers (MCU) 1KB In-system Flash 20MHz 1.8V-5.5V |
Data Sheet |
|
|
||||||||||||
|
ATTINY13A-SSUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 1KB FL 64B EE 64B SRAM 20 MHz IND |
Data Sheet |
|
|
||||||||||||
