Product Summary
The STPS41L60CG is a dual center tab Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged in D2PAK, I2PAK and TO-220AB this device is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
Parametrics
STPS41L60CG absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 60 V; (2)IF(RMS)RMS forward current: 30 A; (3)IF(AV)Average forward current Tc = 125°C d = 0.5 Per diode: 20 A; (4)IFSM Surge non repetitive forward current tp = 10 ms sinusoidal: 220 A; (5)IRRM Peak repetitive reverse current tp = 2 μs square F=1kHz: 1 A; (6)PARM Repetitive peak avalanche power tp = 1μs Tj = 25°C: 9500 W; (7)Tstg Storage temperature range: - 65 to + 175 °C; (8)Tj Maximum operating junction temperature: 150 °C; (9)dV/dt Critical rate of rise reverse voltage: 10000 V/μs.
Features
STPS41L60CG features: (1)negligible switching losses; (2)low forward voltage drop; (3)low thermal resistance; (4)avalanche capability specified.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS41L60CG |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 2X20 Amp 60 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
|

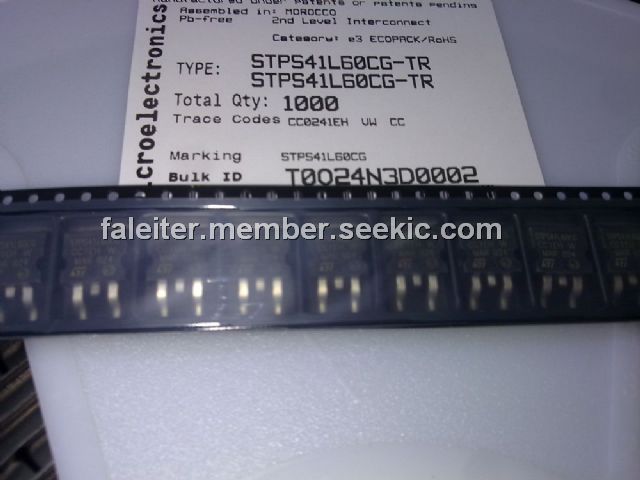

STPS41L60CG-TR |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 2X20 Amp 60 Volt |
Data Sheet |
|
|
||||||||||||
