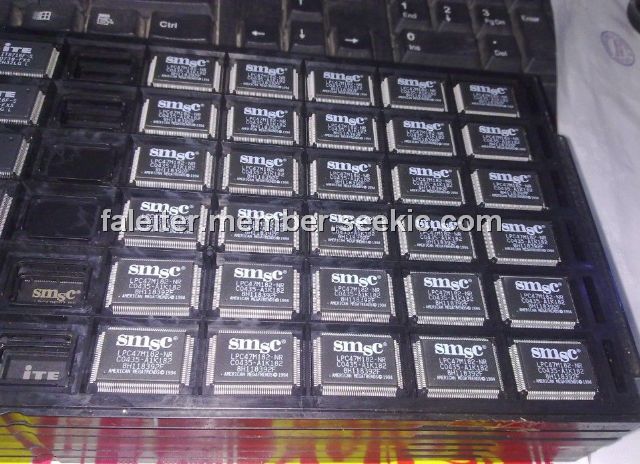

Product Summary

The LPC47M182-NR is a 3.3V (5V tolerant) PC99a/PC2001 compliant Advanced I/O controller for Desktop PCs. The LPC47M182-NR, which implements the Low Pin Count (LPC) interface, includes I/O functionality as well as Motherboard GLUE logic into a 128-pin package. This is space saving solution on the motherboard resulting in lower cost. The LPC47M182-NR also provides 13 general purpose pins, which offer flexibility to the system designer, and two Fan Tachometer Inputs. The LPC47M182-NR’s LPC interface supports LPC I/O and DMA cycles.

Parametrics

LPC47M182-NR absolute maximum ratings: (1)Maximum 3.3 Supply: +4.1V; (2)Maximum 5V Supply: +6.0V; (3)Voltage on any 3.3V pin, with respect to Ground: -0.5 to 5.5V; (4)Voltage on any 5V pin, with respect to Ground: -0.5 to 5.5V; (5)Operating Temperature Range: 0℃ to +70℃; (6)Storage Temperature Range: -55℃ to +150℃.

Features

LPC47M182-NR features: (1)3.3V Operation (5V tolerant); (2)LPC Interface; (3)ACPI 1.0b/2.0 Compliant; (4)Programmable Wake-up Event Interface; (5)PC99a/PC2001 Compliant; (6)General Purpose Input/Output Pins; (7)Fan Tachometer Inputs; (8)Green and Yellow Power LEDs; (9)ISA Plug-and-Play Compatible Register Set; (10)Motherboard GLUE Logic.

Diagrams

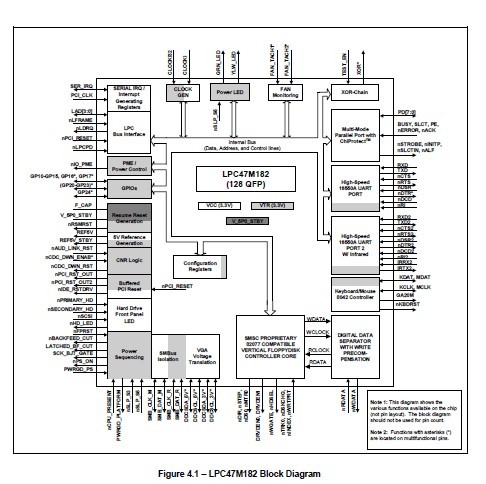

LPC47M182-NR Block Diagram
