Product Summary

The IRFP460 is an international rectifier. It provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The IRFP460 provides greater creepage distance between pins to meet the rquirements of most safety specifications.

Parametrics

IRFP460 absolute maximum ratings: (1)ID @ TC=25℃, continuous drain current, VGG @ 10V: 20A; (2)ID @ TC=100℃, continuous drain current, VGG @ 10V: 13A; (3)IDM pulsed drain current: 80A; (4)PD@ TC=25℃, power dissipation: 280W; (5)LInear derating factor: 2.2W/℃; (6)VGS gate-to-source voltage: ±20V; (7)EAS single pulse avalanche energy: 960mJ; (8)IAR avalance current: 20A; (9)EAR repetitive avalanche energy: 28mJ; (10)dv/dt peak diode recovery dv/dt: 3.5V/ns.

Features

IRFP460 features: (1)Dynamic dv/dt rating; (2)Repetitive avalanche rated; (3)Isolated central mounting hole; (4)Fast switching; (5)Ease of paralleling; (6)Simple drive requirements.

Diagrams

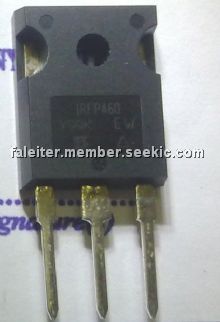

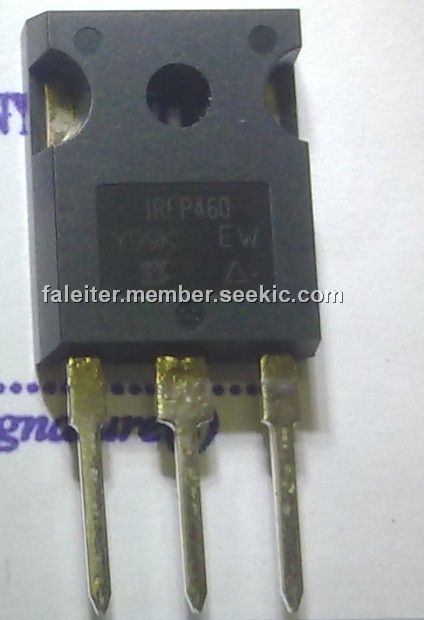

IRFP460 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP460
IRFP460
Vishay/Siliconix
MOSFET N-Chan 500V 20 Amp
Data Sheet
0-309: $6.48
309-500: $6.01
500-1000: $5.83
IRFP460, SiHFP460
IRFP460, SiHFP460
Other

Data Sheet
Negotiable
IRFP460A
IRFP460A
Vishay/Siliconix
MOSFET N-Chan 500V 20 Amp
Data Sheet
0-331: $5.42
331-500: $4.97
500-1000: $4.78
IRFP460_R4943
IRFP460_R4943
Fairchild Semiconductor
MOSFET TO-247 N-Ch Power
Data Sheet
Negotiable
IRFP460A_R4944
IRFP460A_R4944
Fairchild Semiconductor
MOSFET TO-247
Data Sheet
Negotiable
IRFP460A, SiHFP460A
IRFP460A, SiHFP460A
Other

Data Sheet
Negotiable
IRFP460BPBF
IRFP460BPBF
Vishay/Siliconix
MOSFET 500V 20A 250mOhm @ 10V
Data Sheet
0-1: $2.41
1-10: $2.08
10-100: $1.61
100-250: $1.44
IRFP460LCPBF
IRFP460LCPBF
Vishay/Siliconix
MOSFET N-Chan 500V 20 Amp
Data Sheet
0-1: $2.41
1-10: $1.94
10-100: $1.76
100-250: $1.59
