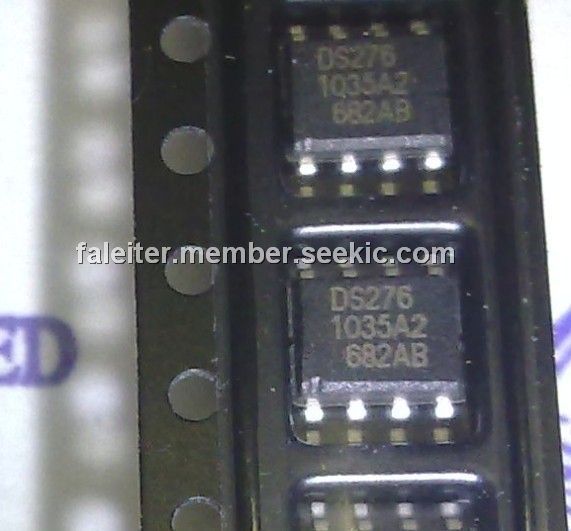

DS276

Low Power Transceiver Chip, TSSOP, -0.3V to +7.0V, Ultra-low static current, Low-power

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: DS276

Brand:: Dallas Semiconductor - Maxim | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jackson's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-22

From Other Seller

Part Number:DS276
US $1.00 - 2.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

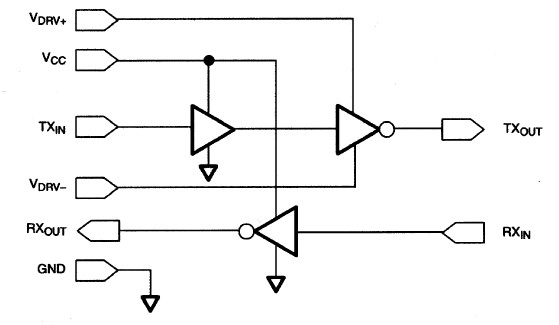

The DS276 is a Low Power Transceiver Chip. It provides a low-cost, very low-power interface to RS-232 serial ports. The receiver input translates RS-232 signal levels to common CMOS/TTL levels. The transmitter can be used with independently supplied positive and negative supplies, but in most cases will be used with the positive supply, sharing the logic supply and the negative supply stolen from the receive RS-232 signal when that signal is in a negative state (marking). The DS276 will use system power (3-12 volts) for positive transitions while still employing the receive signal for negative transitions.

Parametrics

DS276 absolute maximum ratings: (1)VCC: -0.3V to +7.0V; (2)VDR+: -0.3V to +13V; (3)VDR-: -13V to +0.3V; (4)RXIN: -15V to +15V; (5)TXIN: -0.3V to VCC+0.3V; (6)TXOUT: -15V to +15V; (7)RXOUT: -0.3V to VCC+0.3V; (8)Operating Temperature: 0℃ to 70℃; (9)Storage Temperature: -55℃ to +125℃; (10)Soldering Temperature: 260℃ for 10 seconds.

Features

DS276 features: (1)Low-power serial transmitter/receiver for battery-backed systems; (2)Transmitter steals power from receive signal line to save power; (3)Single 3V or 5V operation; (4)Full duplex operation up to 20k bps; (5)Ultra-low static current; (6)Compatible with RS-232-E signals.
