Product Summary
The NH82801GBM is an I/O Controller. It provides extensive I/O support. The NH82801GBM incorporates a variety of PCI functions that are divided into six logical devices (B0:D27, B0:D28, B0:D29, B0:D30, B0:D31 and B1:D8). D30 is the DMI-to-PCI bridge and the AC 97 Audio and Modem controller functions, D31 contains the PCI-to-LPC bridge, IDE controller, SATA controller, and SMBus controller, D29 contains the four USB UHCI controllers and one USB EHCI controller, and D27 contains the PCI Express root ports. B1:D8 is the integrated LAN controller.
Parametrics
NH82801GBM absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground: -0.5 to Vcc3_3 + 0.5 V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground (V5REF=5 V): -0.5 to V5REF + 0.5 V; (3)1.05 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (4)1.5 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (5)3.3 V Supply Voltage with respect to VSS: -0.5 to 4.6 V; (6)5.0 V Supply Voltage with respect to VSS: -0.5 to 5.5 V; (7)V_CPU_IO Supply Voltage with respect to VSS: -0.5 to 2.1 V.
Features
NH82801GBM features: (1)Flexible SMBus/SMLink architecture to optimize for ASF; (2)Provides independent manageability bus through SMLink interface; (3)Supports SMBus 2.0 Specification; (4)Host interface allows processor to communicate via SMBus; (5)Slave interface allows an internal or external Microcontroller to access system resources; (6)Timers to generate SMI# and Reset upon detection of system hang; (7)Timers to detect improper processor reset; (8)Integrated processor frequency strap logic; (9)Supports ability to disable external devices.

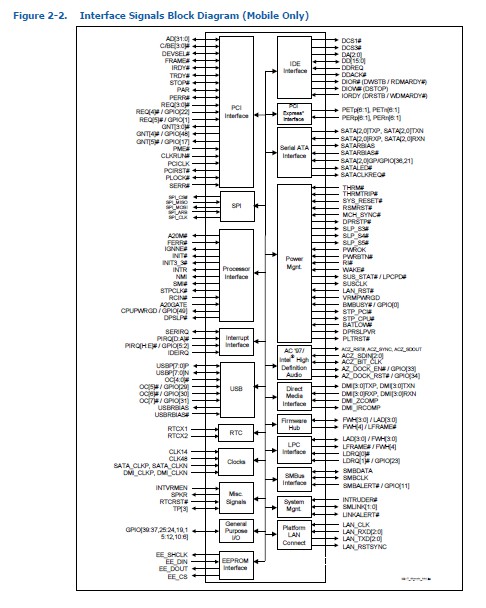

Diagrams
