Product Summary
The MAX3232 is a 3V to 5.5 V multichannel RS-232 line driver/receiver with ±15kV ESD protection.
Parametrics
MAX3232 absolute maximum ratings: (1)Supply voltage range, VCC: 0.3 V to 6 V; (2)Positive output supply voltage range, V+: 0.3 V to 7 V; (3)Negative output supply voltage range, V: 0.3 V to .7 V; (4)Supply voltage difference, V+ -V: 13 V; (5)Operating virtual junction temperature, TJ: 150℃; (6)Storage temperature range, Tstg: 65℃ to 150℃.
Features
MAX3232 features: (1)RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM); (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Operates With 3-V to 5.5-V VCC Supply; (4)Operates Up To 250 kbit/s; (5)Two Drivers and Two Receivers; (6)Low Supply Current 300 μA Typical; (7)External Capacitors 4 × 0.1 μF; (8)Accepts 5-V Logic Input With 3.3-V Supply.

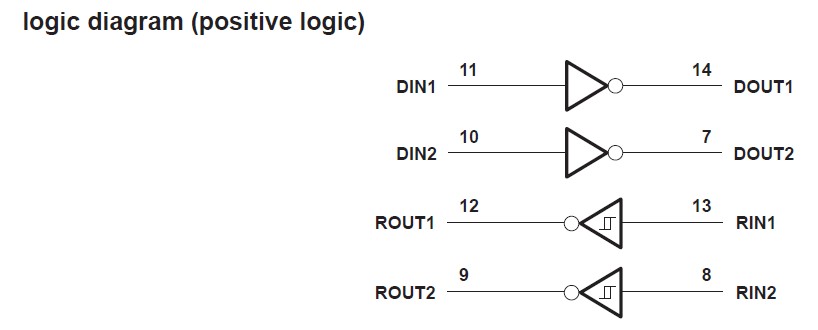

Diagrams
