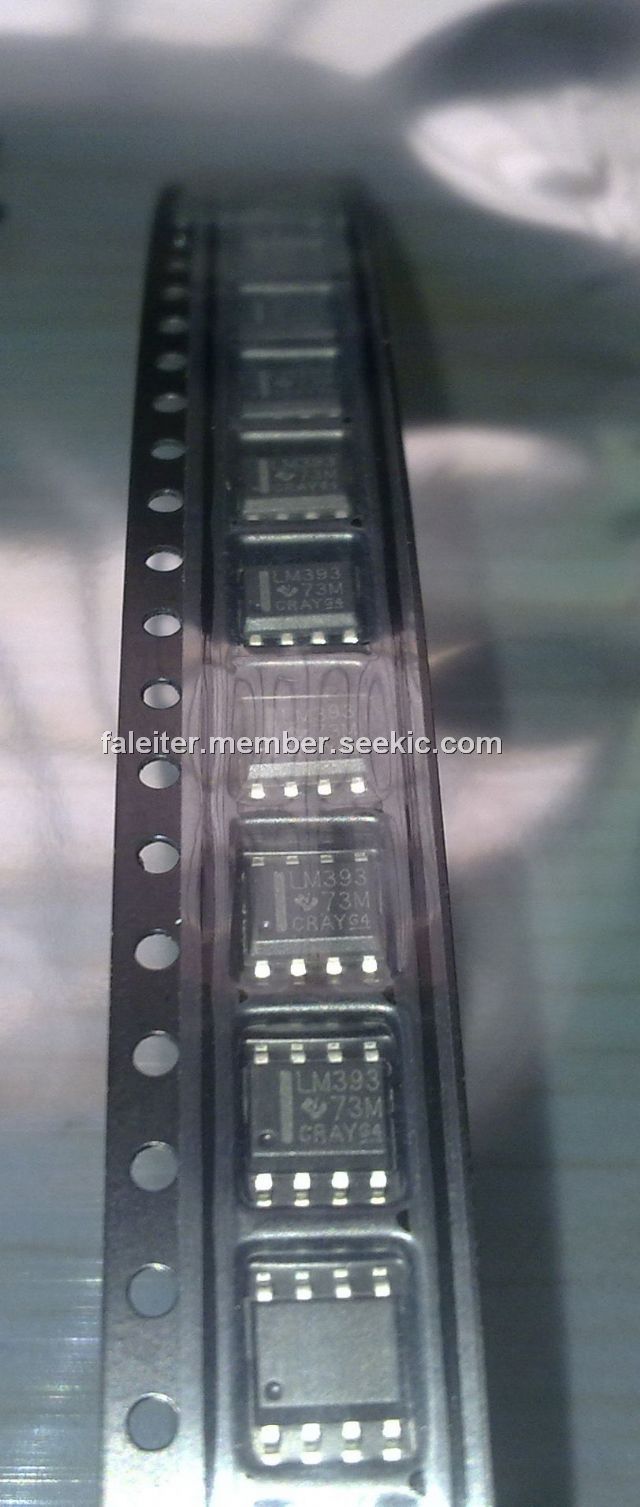

LM393

dual differential comparator, LM393, 36 V, 20 mA, 16 inch, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~0.90

PartNumber:: LM393

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jackson's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:LM393
US $0.70 - 0.90
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

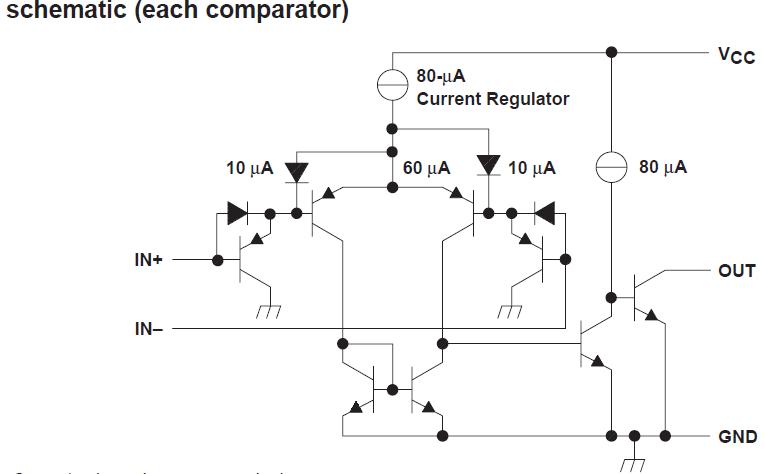

The LM393 is a dual differential comparator. The LM393 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393 is characterized for operation from 0℃ to 70℃.

Parametrics

LM393 absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): –0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJA: 97℃/W; (8)Case temperature for 60 seconds: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: –65 to 150℃.

Features

LM393 features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage: 2 V to 36 V; (3)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (4)Low Input Bias Current: 25 nA Typ; (5)Low Input Offset Current; (6)Low Input Offset Voltage: 2 mV Typ; (7)Common-Mode Input Voltage Range Includes Ground; (8)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±6 V; (9)Low Output Saturation Voltage; (10)Output Compatible With TTL, MOS, and CMOS.
