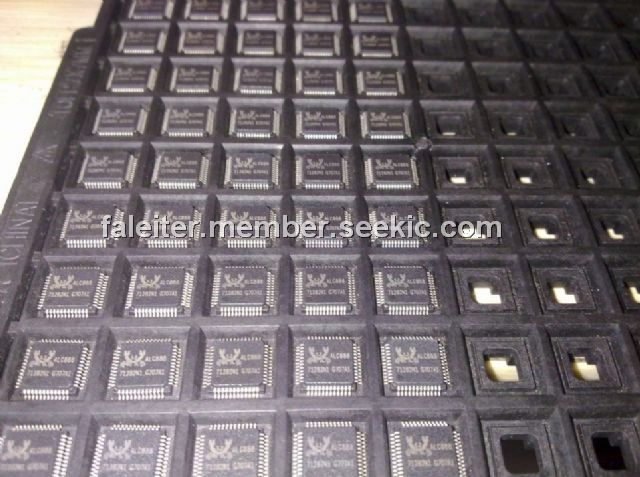

ALC888

QFP, 7.1+2 channel, high definition, audio codec, 3.0 to 3.6V, ten DAC channels

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~1.30

PartNumber:: ALC888

Brand:: Realtek Semiconductor - Realtek | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jackson's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-07

From Other Seller

Part Number:ALC888
US $0.70 - 1.30
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ALC888 is a high-performance 7.1+2 Channel and High Definition Audio Codec providing ten DAC channels that simultaneously support 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. The ALC888 integrates two stereo ADCs that can support a stereo microphone, and feature Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology.

Parametrics

ALC888 absolute maximum ratings: (1)Digital power for core, DVDD: 3.0 to 3.6V; (2)Digital power for HDA link, DVDD-IO: 1.5 to 3.6V; (3)Analog, AVDD: 3.3 to 5.5V; (4)Ambient Operating Temperature, Ta: 0 to +70℃; (5)Storage Temperature, Ts: +125℃.

Features

ALC888 features: (1)All DACs supports 44.1k/48k/96k/192kHz sample rate; (2)All ADCs support 44.1k/48k/96k sample rate; (3)16/20/24-bit S/PDIF-OUT supports 44.1k/48k/96k/192kHz sample rate; (4)16/20/24-bit S/PDIF-IN supports 44.1k/48k/96k/192kHz sample rate ; (5)Up to four channels of microphone array input are supported for AEC/BF application; (6)High-quality analog differential CD input; (7)Supports external PCBEEP input and built-in digital BEEP generator; (8)Software selectable 2.5V/3.75V VREFOUT; (9)Two jack detection pins each designed to detect up to 4 jacks; (10)Supports legacy analog mixer architecture; (11)Wide range (–80dB to +42dB) volume control with 1.5dB resolution of analog to analog mixer gain; (12)Software selectable boost gain (+10/+20/+30dB) for analog microphone input; (13)All analog jacks are stereo input and output re-tasking for analog plug & play; (14)Built-in headphone amplifiers for each re-tasking jack; (15)Two GPIOs (General Purpose Input and Output) for customized applications.
